DiamondGem Acoustic Enclosure

The Rationality of Beauty

Inspired by the multifaceted form of a diamond, "Point" features 12 precision-engineered geometric planes—not just a visual masterpiece, but an acoustically optimized technological marvel. Every angle is rigorously calculated to minimize wave interference, delivering pristine sound purity.

The front baffle is CNC-machined from a solid 20cm-thick 6061 aerospace-grade aluminum alloy block, weighing 16kg to eliminate cabinet resonance and audio distortion.

Axially Symmetric Passive Radiator System

Compact Size, Colossal Energy

With its innovative triple-driver acoustic design, "Point" integrates 1 active CarbonEcho x6.5 driver and 2 symmetrically rear-mounted passive CarbonEcho F6.5 radiators, forming a unique second-order mass-spring vibration system. This breakthrough achieves visually deceptive low-frequency performance in a compact enclosure—combining the tight transient response of a sealed design with the deep extension of a ported system, all while liberating users from the stringent placement demands of traditional designs.

Versatile Mounting System

Adapted for Full-Range Hi-End Applications

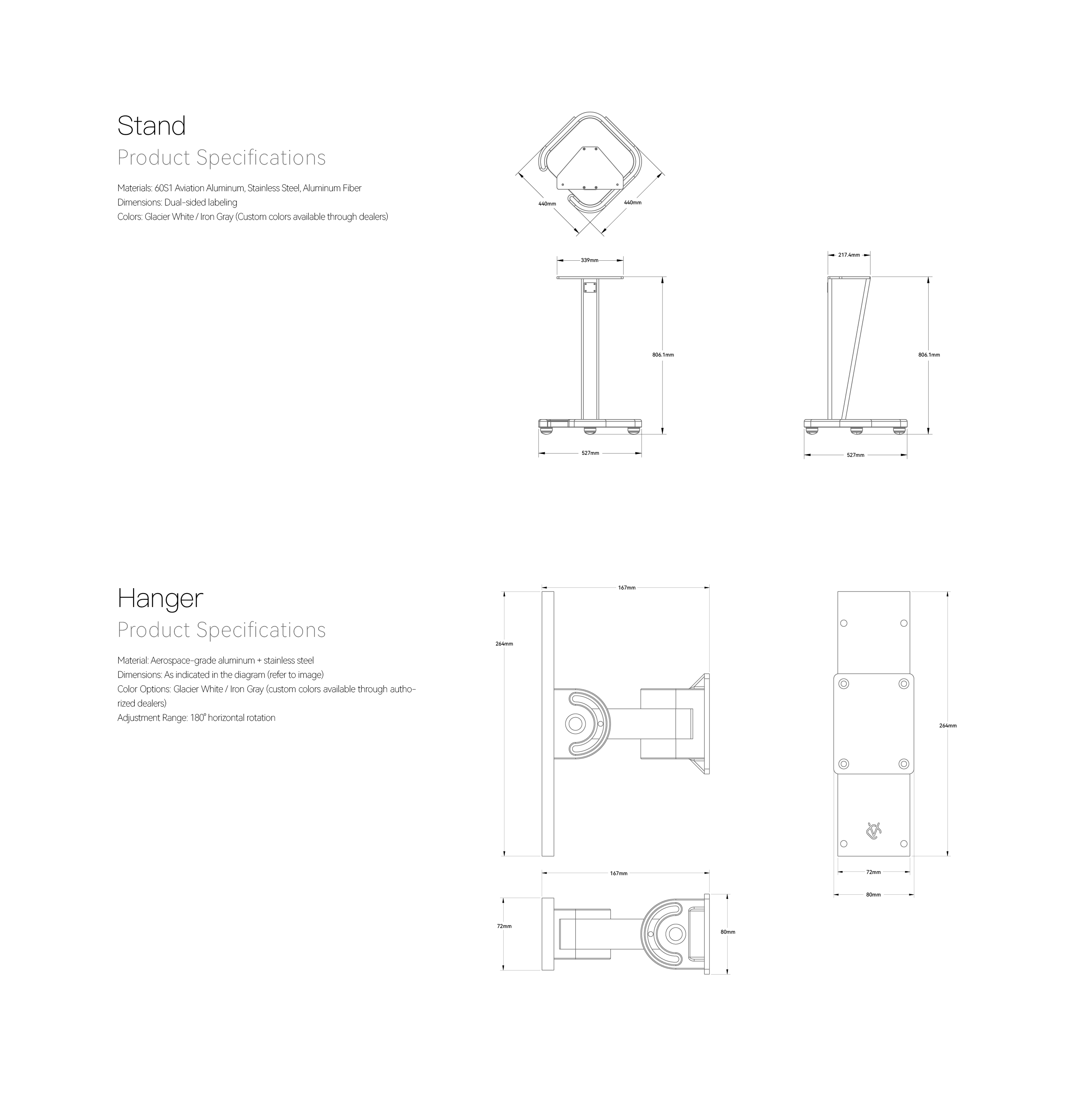

Explore multiple installation options: The included "Stand" floor base—crafted from a composite of carbon fiber, aluminum, and high-strength stainless steel—is acoustically tuned to "Point"for seamless integration, delivering the effortless performance of a floor-standing speaker. For specialized setups, users can opt for the "Hanger" wall-mount bracket, enabling secure placement on walls for studio or home theater applications. Alternatively, suspend it directly from the ceiling to construct a Hi-End-grade immersive Dolby Atmos system.
