Eclipse

Line

Line Source Module

Leave No Room for Criticism, Even to the Most Discerning Ears

Cosvox's philosophy of music has always revolved around recreating the live music experience, a principle deeply embedded in the core of our products.
Thus, when developing the "Line" module, we took inspiration from the line array systems used in grand concert halls and live performances.
The "Line" module can be incrementally paired and expanded according to actual spatial dimensions, delivering full-range sound with ultra-low distortion at 110dB—equally flawless in spaces ranging from 20㎡ to 100㎡ within the listening area.

Fully sealed high-strength box body,

stronger when facing greater force.

This professional audio solution features a fully sealed 6021 aviation aluminum box design, achieving ultimate precision and rapid response with a military-grade fully sealed precision structure. The modular design integrates an array system composed of multiple "CarbonEcho X6.5" mid-bass units and 6 AMT pneumatic tweeters, along with a 500W high-power low-distortion power amplifier module, capable of outputting over 115dB sound pressure level and perfectly covering the 45Hz-25kHz frequency range. Whether it's the high-precision monitoring requirements of a recording studio or the high sound pressure scenarios of a cinema, it can effortlessly provide users with a professional auditory experience.

Line Module

The ultimate interpretation of line array technology

The Line module sets a new benchmark with its groundbreaking acoustic engineering design. It features a high-performance line array system composed of six precisely arranged AMT pneumatic tweeters, which not only achieve long-distance high-pressure sound transmission but also perfectly preserve the most delicate details of the music. Paired with the CarbonEcho X6.5 mid-bass unit, specially optimized for the full frequency range, it delivers an ultra-wide frequency response of 40Hz - 25kHz (±1.5dB) and an ultimate balanced performance. This system, embodying the core acoustic technology of Cosvox, allows you to experience the brand's signature soulful sound quality with just one pair of modules, offering the most immersive audio experience with the purest configuration. We consider it a complete music system rather than merely a mid-high frequency sound module.

We consider it to be a comprehensive music system, rather than merely a mid- to high-frequency sound production module.

AMT pneumatic tweeter array

Ensuring ultra-high frequency extension and detail density

CarbonEcho X6.5 mid-bass unit

Perfectly covering the full frequency range from 40Hz to 25kHz

Modular design

A pair of "Line" / "Line Center" can present the soulful sound quality that is characteristic of Cosvox

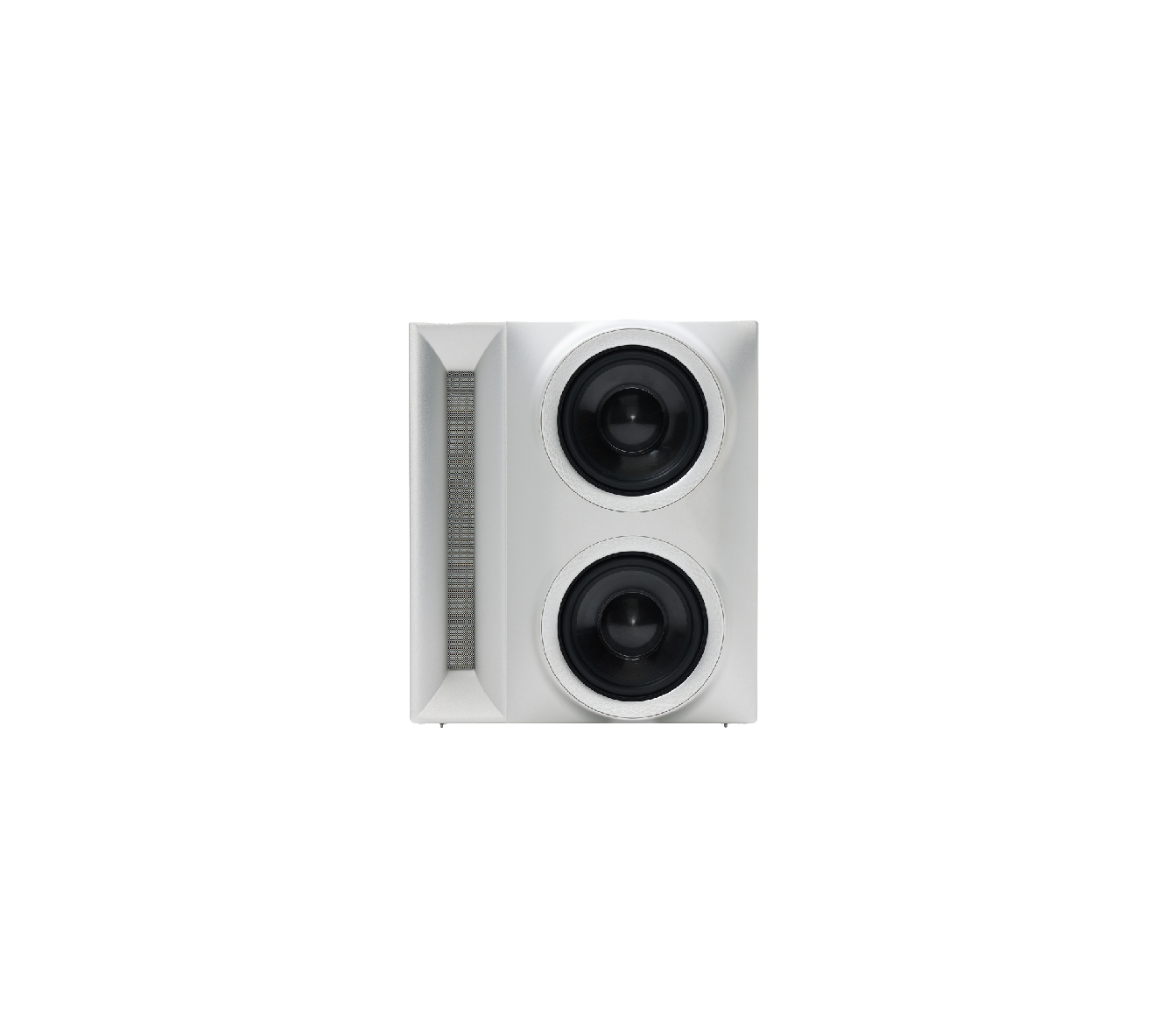

Line Passive Module
(Passive Edition)





Absolute Sound Quality Under Your Control

COSVOX Line Passive Module inherits the full acoustic essence of the Line series — featuring a sealed aerospace-grade aluminum enclosure, 6-unit AMT ribbon tweeter array, and CarbonEcho X6.5 mid-woofer configuration. With a 40Hz-25kHz (-3dB) frequency response, it redefines the performance ceiling of passive systems. By eliminating built-in amplification, it places the final piece of the audio chain — absolute control over power amplification — entirely in your hands. Whether recreating the analog warmth of Abbey Road or building Hollywood’s latest ATMOS final mixing stage, the Line Passive Module delivers flawless compatibility. Even at 115dB peak SPL, it maintains THD <0.5% ultra-low distortion, with high-frequency extension reaching 40kHz.
